TMAtools

The goal of TMAtools is to facilitate the efficient and reproducible processing and integration of TMA data at scale.

Documentation and examples are available at edgeresearch-ca.github.io/TMAtools.

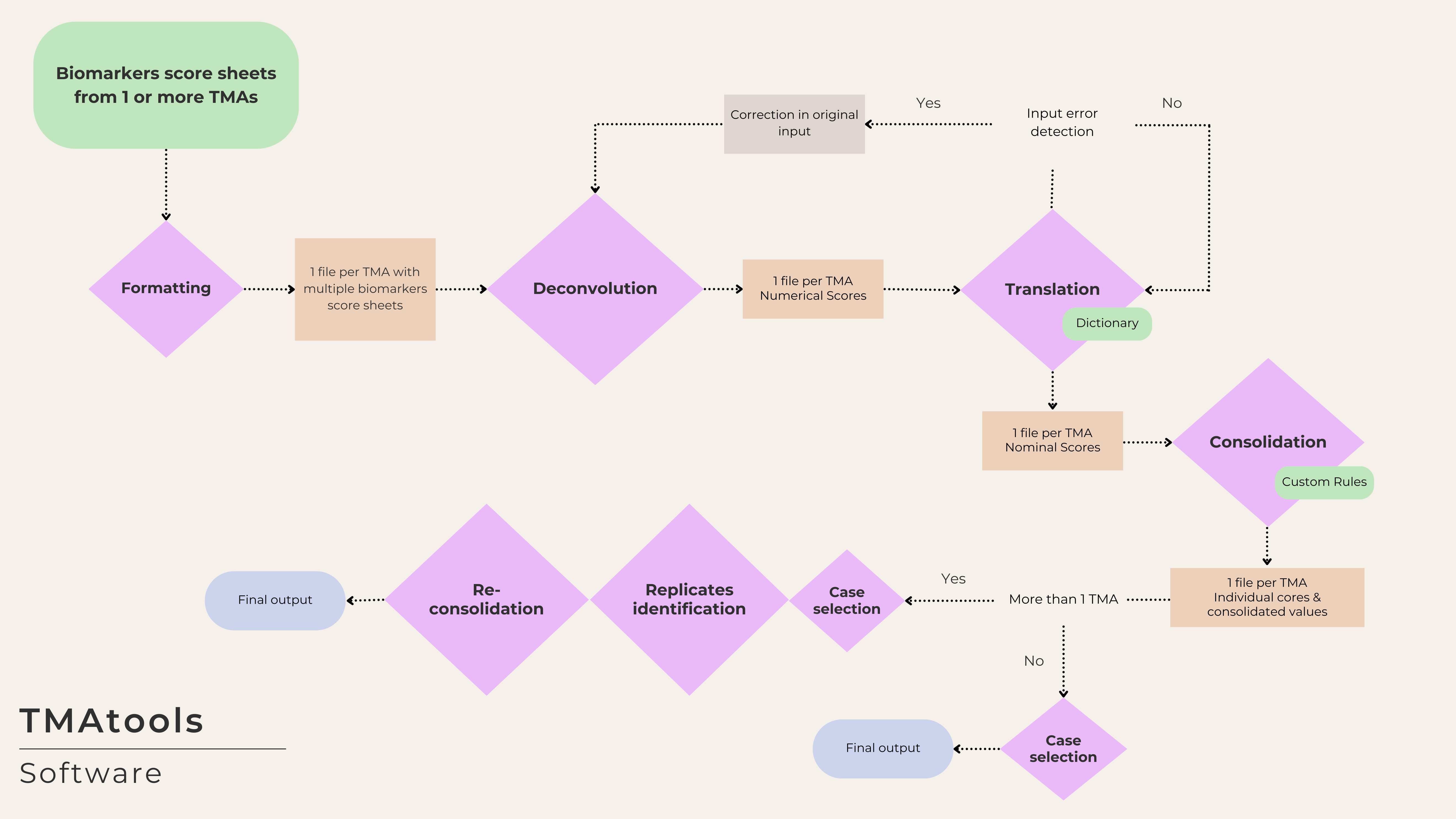

Overview

TMAtools overview fig.

Installation

You can install the development version of TMAtools from GitHub with:

# install.packages("remotes")
remotes::install_github("EDGEResearch-CA/TMAtools")

Example

This is a basic example that comes with the package, containing two independent TMAs (tma1 and tma2). The data from each TMA is located within a separate folder. Here, we use the system.file() function to grab the path to the tma1 and tma2 folders. For your own data, please replace tma_dirs with the path to your own TMA(s).

library(TMAtools)
# 2 example folders with TMA files (which come with TMAtools)
tma_dirs <- c(
 system.file("extdata", "tma1", package = "TMAtools"),
 system.file("extdata", "tma2", package = "TMAtools")
)
# If using your own data, raplace tma_dirs definition, eg:
# tma_dirs <- "C:/Users/JaneDoe/Documents/my_tma"

# spreadsheet with translation and consolidation rules
# for the examples tma1 and tma2
biomarker_rules_file <- system.file(
  "extdata", "biomarker_rules_example.xlsx",
  package = "TMAtools"
)

# Run the TMAtools pipeline
tmatools(
  tma_dirs = tma_dirs,
  biomarker_rules_file = biomarker_rules_file,
  output_dir = "tmatools_output"
)

Processing your own data

To process your own data, TMAtools requires two main inputs: a biomarker rules file and one or more TMA folders, as explained below.

Biomarkers rule file

Excel file containing translation and consolidation rules. It must be placed outside TMA folders. Column names should match the template file inst/extdata/biomarker_rules_example.xlsx (download the raw file from GitHub to explore in Excel). You can create a copy of this file for your own customization with the code below.

example_rules <- system.file(
  "extdata", "biomarker_rules_example.xlsx",
  package = "TMAtools"
)
file.copy(example_rules, "biomarker_rules_example_copy.xlsx")

Full template for IHC biomarkers and customization

TMAtools also includes another rules template file called inst/extdata/biomarker_rules_enoc.xlsx, which contains translation and consolidation rules for 19 different biomarkers applied to studying Endometrioid and Clear Cell Ovarian Carcinomas. You can create a copy of this file for your own customization with the code below.

enoc_rules <- system.file(
  "extdata", "biomarker_rules_enoc.xlsx",
  package = "TMAtools"
)
file.copy(enoc_rules, "biomarker_rules_enoc_copy.xlsx")

TMA folders

There must be one folder per TMA (the folder name will be used as a label in output files). Each TMA folder should contain the files below.

You can check out the contents of the tma1 and tma2 examples on GitHub.

Score sheets

Each score sheet is an Excel file with the actual scores (and potentially other tabs). There must be one score sheet per biomarker. The tab that includes the actual scores should be the same in all score sheets (controlled by the biomarker_sheet_index argument of the tmatools() function). The name of the biomarker is retrieved from the name of this tab, which should match the name in the rules file. TMAtools will let you know if some of these don’t match.

You can explore an example in the file inst/extdata/tma1/example_er.xlsx on GitHub (download the raw file to inspect in Excel).

Clean map

An Excel file containing “clean_map” in the name. This file corresponds to the sector map of your TMA that only contains the core IDs within the corresponding cells. No other annotation outside the map is allowed, as TMAtools uses the exact positions of core IDs to map corresponding scores.

You can explore an example in the file inst/extdata/tma1/tma1_clean_map.xlsx on GitHub.

Metadata

An Excel file with “metadata” in the name. In a single tab, it must contain at least two columns: “core_id” (core IDs that appear in the sector map) and “accession_id” (case or patient identifiers). Optionally, you can add other columns with additional metadata (e.g., age, sex, histotype, block number), which will be carried forward to your output files.

You can explore an example in the file inst/extdata/tma1/example_metadata.xlsx on GitHub.

Bugs

If you find any bugs, please report them at the TMAtools issue tracker. We appreciate it, thank you very much!
